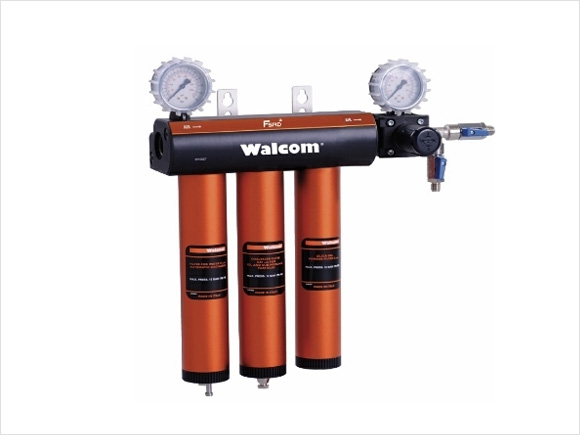

Air filter (FSRD2)

Compressed air filter system to provide the best quality coating..
Suitable for usability solubility coating booth.
Filters water, oil, dust, steam, gas, debris within the compressed air line.
Installable within the coating booth, and the structure automatically discharges residual oil and moisture.
The exterior material is corrosion-free aluminum alloy with durability and easy for maintenance, such as disassembly and assembly.
The cartridge filter may be exchanged or assembled according to use purpose.

SPEC
FSRD 2
Classification	Specifications	Detailed specifications	Note
Main body	Exterior material	Aluminum alloy
	1-step filter	Prior filtering to remove condensation 5μ automatic drain
	2-step filter	Filtering to remove oil residual pollutants 0.01μ manual drain
	3-step filter	Activated carbon filtering to remove all impurities 0.0003 mg/m³
Compressed air tie hole	Incoming	PF 3/4	Manometer attached
	Discharge	PF 1/4	Pressure adjustment and manometer attached
	Air hose	2 spray guns usable at once
Filter stress		5μ ~ 0.01μ
Other	Use pressure	12 bar
	Air passed through	1200 l/min at 6 bar
	Product weight	7kg

It is a compressed air temperature adjustment system to provide the best quality coating.
It is suitable for drying work (70°C) for water-based work and VHS painting work.
It has a temperature adjustment and temperature maintenance function that can keep the compressed air warm (20°C~50°C).
The temperature of the compressed air is maintained with electronic control, 1200W power heating element, PID/SCR system and power adjustment device, etc.

SPEC

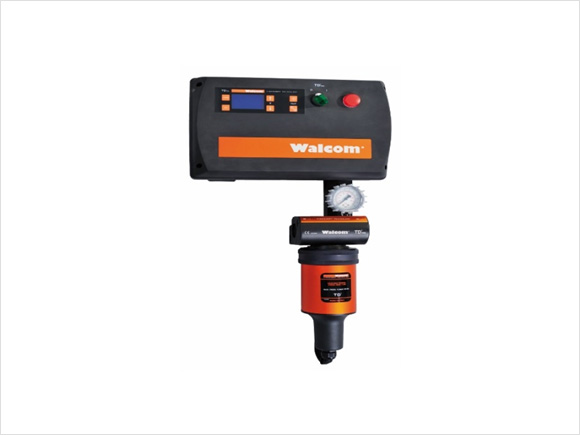

TD¹ PRO
Classification	Specifications	Detailed specifications	Note
Main body	Exterior material	Aluminum alloy
	Heating element	Heating power 1200W air-heating electronic control system
	Heating element	Air temperature adjustment device at 20°C~70 °C
Compressed air tie hole	Incoming	PF 3/4
	Discharge	PF 1/2	Manometer attached

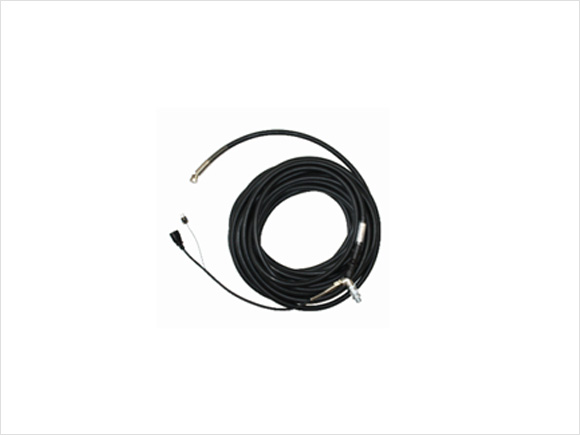

	Hot-wire air hose	2 spray guns usable at once
Filter stress		5μ ~ 0.01μ
Other	Use pressure	12 bar
	Air passed through	1200 l/min at 6 bar
	Product weight	6.7 kg
	Hose length selection	12m , 17m , 22m

It is a compressed air filter temperature adjustment system to provide the best quality coating.
It is suitable for drying work (70°C) for water-based work and VHS painting work.
It complexly filters water, oil, dust, steam, gas, debris within the compressed air line.
It has a temperature adjustment and temperature maintenance function that can keep the compressed air warm (20°C~50°C).
Installable within the coating booth, and the structure automatically discharges residual oil and moisture.
The exterior material is corrosion-free aluminum alloy with durability and easy for maintenance, such as disassembly and assembly.
The cartridge filter may be exchanged or assembled according to use purpose.
The temperature of the compressed air is controlled and maintained with electronic control, 1200W power heating element, PID/SCR system and power adjustment device, etc.

SPEC

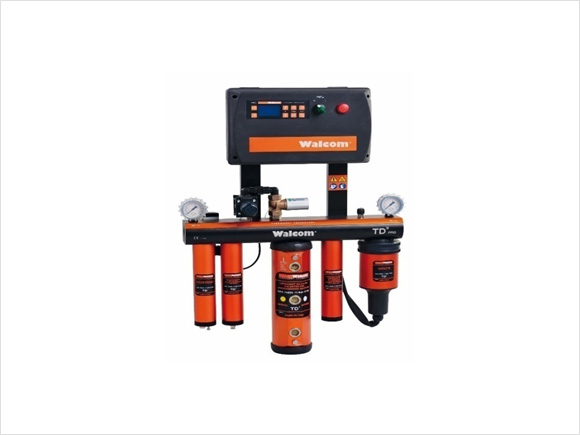

TD³ PRO
Classification	Specifications	Detailed specifications	Note
Main body	Exterior material	Aluminum alloy
	1-step filter	Prior filtering to remove condensation 5μ automatic drain
	2-step filter	Filtering to remove oil residual pollutants 0.01μ manual drain
	3-step filter	Regenerating valve installed to remove residual moisture of silica drier
	4-step filter	Activated carbon filtering to remove all impurities 0.0003 mg/m³
	5-step heating	Heating power 1200W air-heating electronic control system
Compressed air tie hole	Incoming	PF 3/4"	Manometer attached
	Discharge	PF 1/2"	Manometer attached

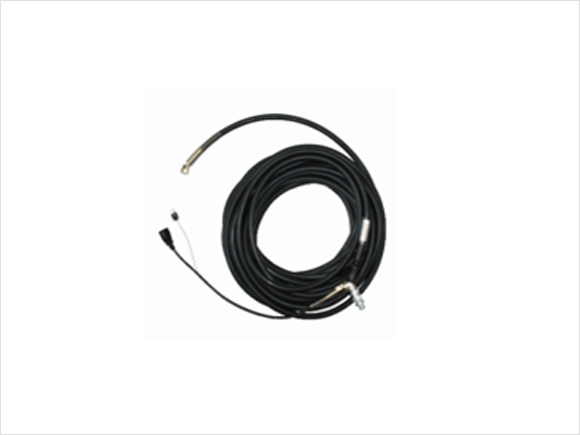

	Hot-wire air hose	2 spray guns usable at once
Filter stress		5μ ~ 0.01μ
Other	Use pressure	12 bar
	Air passed through	1200 l/min at 6 bar
	Product weight	21kg
	Hose length selection	12m , 17m , 22m
