HANIL MACHINERY

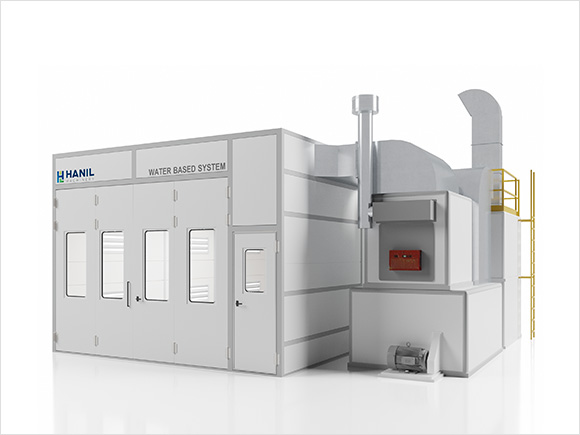

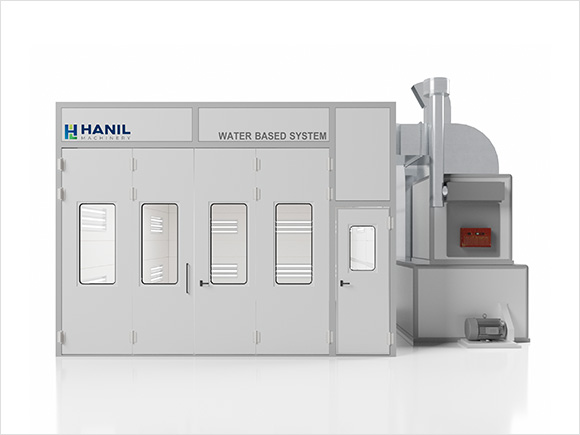

Spray booth
Strong points
- Maximization of space efficiency and system design through self-production facilities
- Dual color steel plate (1mm) / Adiabatic incombustible used 75T
- Italy-imported FAN / Low-noise, high-efficiency / Special endurance bearing installation
- Heating time and cooling time reduced by applying thermal circulation system - Patent number 10-2123648
- Remote control (IOT: option) : Wind pressure control with application of up-to-date touch screen panel / Operation record analysis / Pre-maintenance function / Upgrade / Small-size discharge facility measuring system
- PID (proportional valve) control
SPEC
| Spray booth (Medium) HL700-SB | |||
|---|---|---|---|
| Classification | Classification | Detailed specifications | Note |
| Main body | External standard mm | W4600*L7120*H3445 | |
| Internal standard | W4480*L7000*H2800 | ||
| Panel specifications | Glass panel 75 incombustible color steel plate 1 mm | Urethane panel incombustible material | |
| Vehicle gate | W2800*H2800* | 4DOOR foldable | |
| Emergency door | W740*H2000 | ||
| Indoor lighting | At least 1500 LUX / Low-power, high-efficiency LED 20W 3-light 23SET | ||
| Filter types | Floor glass. Exhaust felt.Pocket. Activated carbon .Air supplied ceiling | ||
| Air supply | Standard | W1760*L2500*H1060 | |
| Airflow | 400CMM (Double-way SIROCCO Italian Company) 380V*3P*60HZ*7.5KW High-efficiency |
||
| Burner capacity kcal/h | 200,000kcal/h (Diesel/LPG.LNG) | Gas fire 200,000kcal/h | |
| Air exhaustion | Standard | W1300*L2000*H2600 | |
| Air exhaust system | 400CMM (AIR FOIL Italy) 380V*3P*60HZ*11KW High-efficiency | ||
| Activated carbon | 250kg | At least 350kg | |
| Electricity | Control panel | Input power source 380V -4P23KW s/w-type | Touch screen panel |
| Optional | Water solubility | Down draft method | Air nozzle jet |
| Infrared heater | 1.8kw*20 | ||
| Air conditioner | Waterborne coating, drying, and maintaining indoor temperature at 15 degrees during the summer (30RT) |
||
