Spray booth
Strong points
- Maximization of space efficiency and system design through self-production facilities
- Dual color steel plate (1mm) / Adiabatic incombustible used 75T
- Italy-imported FAN / Low-noise, high-efficiency / Special endurance bearing installation
- Heating time and cooling time reduced by applying thermal circulation system - Patent number 10-2123648
- Remote control (IOT: option) : Wind pressure control with application of up-to-date touch screen panel / Operation record analysis / Pre-maintenance function / Upgrade / Small-size discharge facility measuring system
- Enhancement of worker's stability and convenience by applying side-guide filter system
- PID (proportional valve) control
SPEC

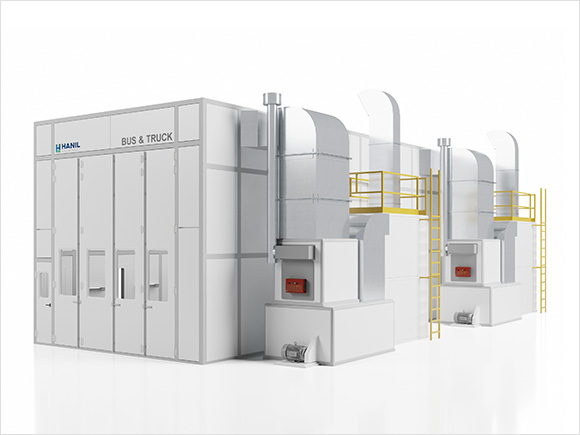

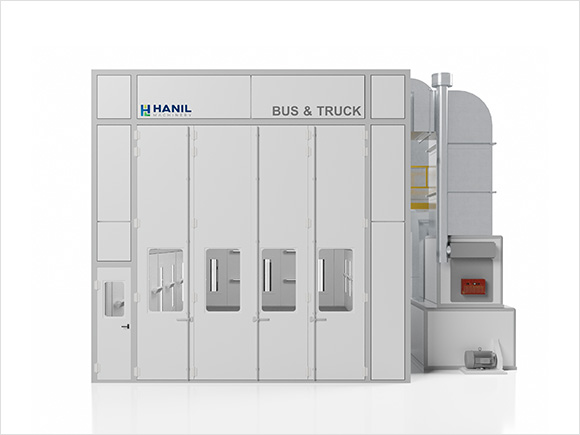

| Spray booth (Large): HL1600-SB | |||
|---|---|---|---|
| Classification | Specifications | Detailed specifications | Note |
| Main body | External standard mm | W5400*L16230*H5800 | |
| Internal standard | W5200*L1530*H5000 | ||
| Panel specifications | Glass panel 75 incombustible color steel plate 1 mm | Urethane panel incombustible material | |
| Vehicle gate | W4000*H5000*4DOOR foldable | ||
| Emergency door | W740*H2000 | ||
| Indoor lighting | At least 1500 LUX / Low-power, high-efficiency LED 20W 3-light 34SET | ||
| Filter types | Floor glass. Exhaust felt.Pocket. Activated carbon .Air supplied ceiling | ||
| Air supply | Standard | W1890*L2700*H1250 | |
| Airflow | 450CMM (Double-way SIROCCO Italian Company) 380V*3P*60HZ*11KW High-efficiency |
2SAT | |
| Burner capacity kcal/h | 250,00kcal/h (Diesel/LPG.LNG) (2SAT) | Gas fire 250.00kcal/h | |
| Air exhaustion | Standard | W1500*L2300*H2700 | |
| Air exhaust system | 450CMM (AIR FOIL Italy) 380V*3P*60HZ*15KW High-efficiency | 2SAT | |
| Activated carbon | 250kg (2SAT) | At least 350kg | |
| Electricity | Control panel | Input power source 380V -4P 55KW s/w-type | Touch screen panel |
| Optional | Water solubility | Down draft method | Air nozzle jet |
| Infrared heater | 1.8kw*42 | ||
| Worker lift | Air lift movable to left, right, upward, downward | ||
