About our products
HANIL MACHINERY

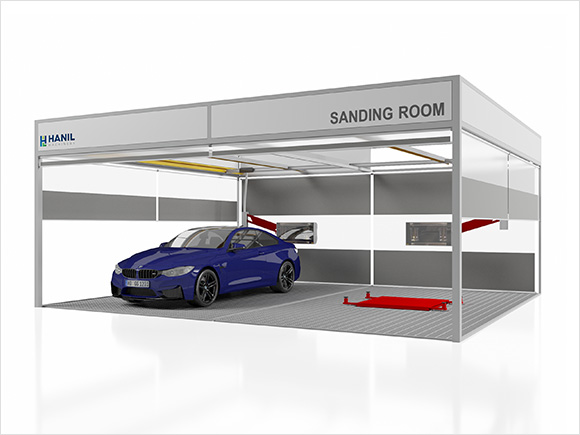

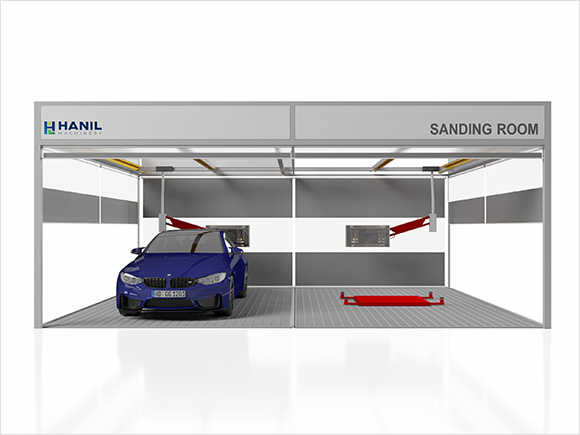

Sanding room
Strong points
- Maximization of space efficiency and system design through self-production facilities
- Dual color steel plate (1mm) / Adiabatic incombustible used 75T
- Italy-imported FAN / Low-noise, high-efficiency / Special endurance bearing installation
- Remote control (IOT: option) : Application of up-to-date touch screen panel / Wind pressure control / Operation record analysis / Pre-maintenance function / Upgrade / Small-size discharge facility measuring system
SPEC
| Sanding room (Open) HL600-SR-B | |||
|---|---|---|---|
| Classification | Specifications | Detailed specifications | Note |
| Main body | External standard mm | W4000*L7120*H2800 | |
| Internal standard | W3820*L7000*H2800 | ||
| Panel specifications | Glass panel 75 incombustible color steel plate 1 mm/Side curtain (open) | Urethane panel incombustible material | |
| Vehicle gate | Front curtain (open) | ||
| Emergency door | W740*H2000 | ||
| Indoor lighting | 1200LUX 이상 / 저전력 고효율 LED 20W 3구*18SET | ||
| Filter types | Floor glass. Exhaust felt.Pocket. Activated carbon .Air supplied ceiling | ||
| Air exhaustion | Standard | 1300*2000*2600 | |
| Air exhaust system | 400CMM (AIR FOIL Italy) 380V*3P*60HZ*7.5KW High-efficiency | ||
| Activated carbon filter | Carbon filter | For activated carbon 11KW | |
| Electricity | Control panel | Input power source 380V -4P 20KW s/w-type | Touch screen panel |
| Optional | Mid-infrared heater | 1.8kw 3-way A/L rail-type (Germany Heraeus) | |
| Vehicle work lift | Air lift (2.8T) Germany Hercules | ||
| Air conditioner | Indoor air conditioning and heating (Capacity 11KRW) | ||
