About our products
HANIL MACHINERY

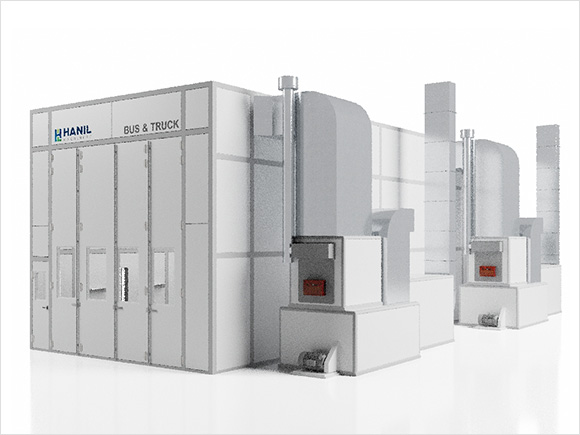

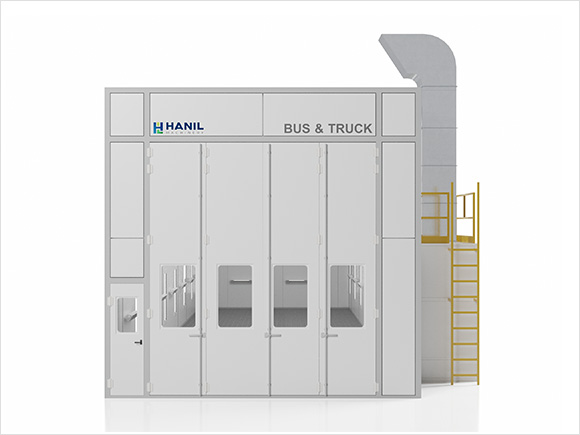

Sanding room
Strong points
- Maximization of space efficiency and system design through self-production facilities
- Dual color steel plate (1mm) / Adiabatic incombustible used 75T
- Italy-imported FAN / Low-noise, high-efficiency / Special endurance bearing installation
- Remote control (IOT: option) : Application of up-to-date touch screen panel / Wind pressure control / Operation record analysis / Pre-maintenance function / Upgrade / Small-size discharge facility measuring system
- Enhancement of worker's stability and convenience by applying side-guide filter system
SPEC
| Sanding room (Large) HL1600-SR | |||
|---|---|---|---|
| Classification | Specifications | Detailed specifications | Note |
| Main body | External standard mm | W5400*L16230*H5800 | |
| Internal standard | W5200*L1530*H5000 | ||
| Panel specifications | Glass panel 75 incombustible color steel plate 1 mm | Urethane panel incombustible material | |
| Vehicle gate | W4000*H5000*4DOOR foldable | ||
| Emergency door | W740*H2000 | ||
| Indoor lighting | At least 1500 LUX /Low-power, high-efficiency LED 20W 3-light 34SET | ||
| Filter types | Floor glass. Exhaust felt.Pocket. Activated carbon .Air supplied ceiling | ||
| Air exhaustion | Standard | 1500*2300*2700 | |
| Air exhaust system | 450CMM (AIR FOIL Italy) 380V*3P*60HZ*15KW High-efficiency | 2SAT | |
| Activated carbon | 250kg (2SAT) | At least 350kg | |
| Electricity | Control panel | Input power source 380V -4P 35KW s/w-type | Touch screen panel |
| Optional | Infrared heater | 1.8kw*42 | |
| Worker lift | Air lift movable to left, right, upward, downward, rise height 2.8M | ||
